Fastener Charts

Brads Compatible with Angled TrimMaster™

Brad and Fuel Packs – C Series (16ga)

Product CodeLengthBrad (Gauge)HeadFinishFuel CellsBox Qty
B2073232mmAngled(16ga)LostZinc Plated22000
B2073838mmAngled(16ga)LostZinc Plated22000
B20772 38mmAngled(16ga)LostStainless Steel22000
B2074545mmAngled(16ga)LostZinc Plated22000
B2075050mmAngled(16ga)LostZinc Plated22000
B2077445mmAngled(16ga)LostStainless Steel22000
B20776 50mmAngled(16ga)LostStainless Steel22000
B2077863mmAngled(16ga)LostStainless Steel22000
B2076563mmAngled(16ga)LostZinc Plated22000
Brads Compatible with Straight TrimMaster™

Brad and Fuel Packs – C Series (16ga)

Product CodeLengthDiameterBrad (Gauge)HeadFinishFuel CellsBox Qty
B20624H30mm1.6mmC series(16ga)LostZinc Plated22000
B20628H40mm1.6mmC series(16ga)LostZinc Plated22000
B20629H45mm1.6mmC series(16ga)LostZinc Plated22000
B20630H50mm1.6mmC series(16ga)LostZinc Plated22000
B20631H60mm1.6mmC series(16ga)LostZinc Plated22000
B2065025mm1.6mmC series(16ga)LostStainless Steel22000
B2065230mm1.6mmC series(16ga)LostStainless Steel22000

Brad and Fuel Packs – ND Series (14ga)

Product CodeLengthBrad (Gauge)HeadFinishFuel CellsBox Qty
B2066038mmND Series(14ga)LostStainless Steel22000
B2064245mmND Series(14ga)LostZinc Plated22000
B2064350mmND Series(14ga)LostZinc Plated22000
B2066550mmND Series(14ga)LostStainless Steel22000
B2064562mmND Series(14ga)LostZinc Plated22000
Brads Compatible with Pneumatic T250S F16 C Series Bradder


Product CodeLengthBrad (Gauge)HeadFinishBox Qty
B2028025mmC Series (16ga)LostStainless steel2000


Head types

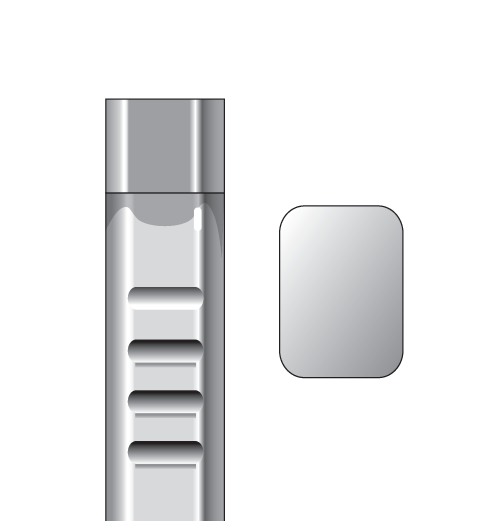

Brad Head Types Lost Head

Lost Head
Most common head type where a hidden fix is required, offers moderate pull through resistance

Shank Types

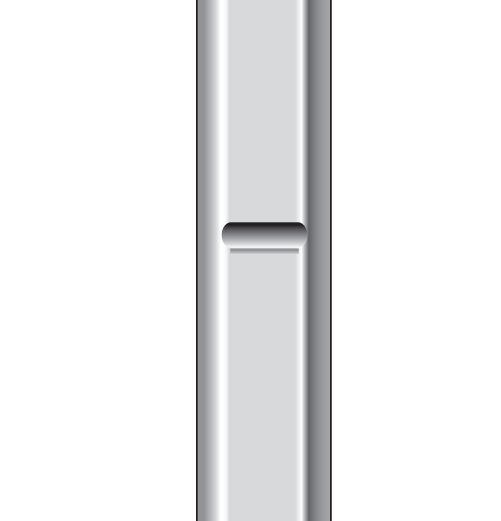

Brad Shank Type Smooth Square

Smooth Square
The most common brad shank, provides excellent holding power in most timber applications and reduces splitting

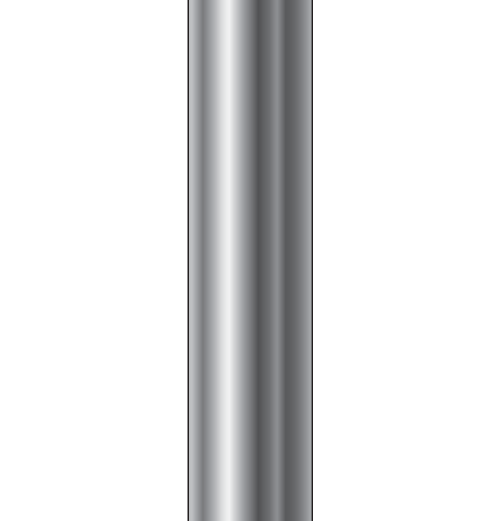

Nail Shank Type Smooth

Smooth Rounded
Provides excellent holding power in most timber applications

Point Types

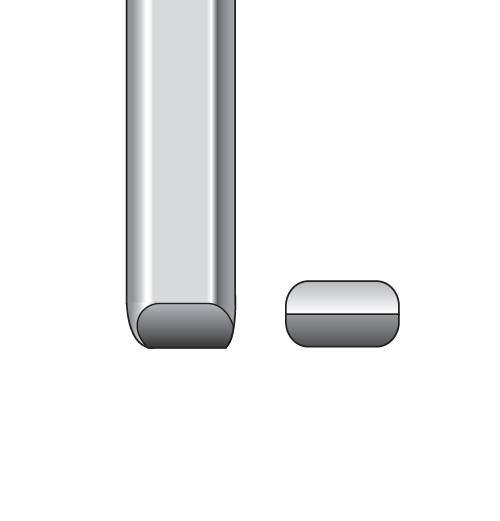

Brad Point Type Chisel

Requires the greatest driving power but almost eliminates timber splitting

Nail Point Type Blunt Chisel

Blunt Chisel
Used in DA brads, almost eliminates timber splitting however not suitable for clinching applications

Collation Types
  • Glue/Adhesive

Coatings / Finishes

FinishOther NamesDescription
BrightBright SteelUnplated, bright iron with no corrosion protective coating.
Zinc PlatedE/GalvZinc Plated or Electromagnetic Galvanising uses electrolysis to draw zinc and chromate onto the surface of bright steel. The result is a thin galvanised layer with a smooth finish, typically up to 10μm (microns).
Mechanical GalvanisedM/GalvNails are coated with zinc by peening powdered forms of the desired coating onto the surface of the nails.
Hot Dipped GalvanisedHDGNails are dipped into hot melted zinc until a surface layer of minimum 50μm of zinc has been created. The thickness of the zinc layer varies from minimum 50μm to typically around 80μm.
Stainless SteelSSManufactured from stainless steel wire providing extreme corrosion resistance
Polymer CoatedDip CoatedA functional resin or glue coating is applied to the nail shank to reduce the required nailing power and also to increase the withdrawal resistance of the nail.
Corrosion Resistance

The New Zealand Building Code Standard NZBS 3604 :11 specifies Durability requirements for framing nails:

  • Bright – For Internal framing use within the Building Envelope
  • Hot Dipped Galvanised – For general exterior use and in Medium risk exposure zone C
  • Stainless Steel (T304 Grade) – For the sea spray zone high risk zone D

Please refer to the BRANZ Map for exact details and check the Paslode BRANZ Appraisal 546 – final authority will be with your Local Area Council / Building Inspector
